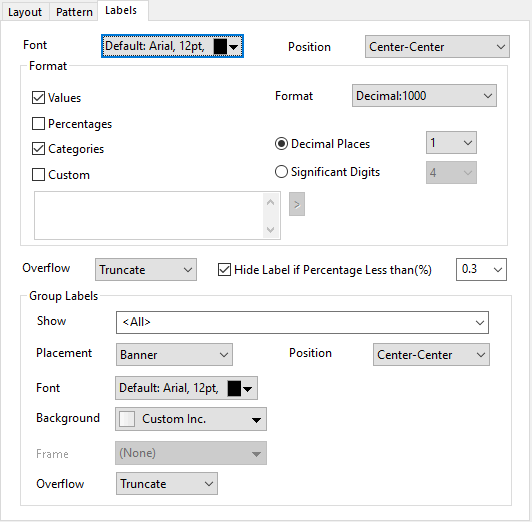

9.3.7.12 The (Plot Details) Labels Tab for TreemapPD-Dialog-TreemapLabels-Tab
Font
Specify the font, font size and other styles for all the labels.
Position
Specify the position of the labels on rectangles.
Format
Specify the label content, display format for the labels.
Overflow
Specify how to hanlde the labels overflowed.
Hide Label if Percentage Less than(%)
Hide the labels of the rectangles, when its percentage (in total weight of all Y values) is less than a specified value.
Group Labels
Show
Specify the group labels of which level(s) will be shown.

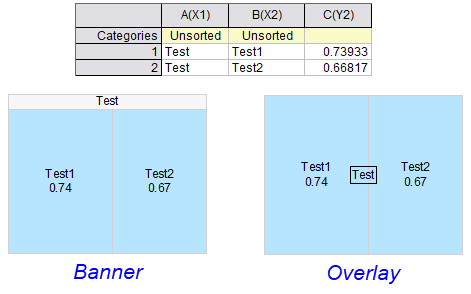

Placement
Specify where to place the group labels.
_Labels_Tab_for_Treemap/Labels_Tab_for_Treemap_03.png?v=97903)
Position
Specify the location of the group labels.
Font
Same as the Font control for the labels on the rectangles(the labels for last level). By default, it will automatically follow the setttings of above Font control.
Background
Set background color for the group labels. You are allowed to select an increment color list to apply different incremental colors to different groups/subgroups.
Frame
When Placement=Overlay, you can add a frame to the group label.
Overflow
Specify how to handle the overflow of the labels. It is same as the Overflow control above.
|
