2.1.11 Search Tool

Search Tool on Main Menu

There is a search box with magnifying-glass icon at last of main menu.

Start menu result short.png

When you first click the box, the search tool will index with progress bar scrolling. Once the indexing is finished, you can enter the keyword(s) to search available resources. Press the F1 button on your keyboard will also expand the search panel. If you don't need use this search tool and want to hide it, you can set the system variable "@DSNB=1" to hide it.

Then all Origin resources related to the keyword(s) will be listed in these categories:

  • Toolbars
  • Menus
  • Mini Toolbars
  • Shortcut Menus
  • Apps
  • FAQ
  • Help
  • Samples
  • Templates

All these categories will be shown as collapsible sections with number of items displayed. If no result si found under the categories, the sections will be hidden.

For Toolbars, Menus and Apps listed in the result panel, unavailable ones for current activated windows will show as grey and are not able to be called out. Hover your mouse over it and a red marker will appear in the tooltip letting you know which window is required for this result.

For the listed Apps and Templates, the marks ahead of the apps show the situation of the apps: 1) Download icon for available to download; 2) Hook icon for already been installed.

Without entering any keyword, only Useful New Tools are listed in the panel. Click the Settings button beside the Search box to open the Settings dialog to customize the searching mechanism and the results display.

Start menu settings.png

In this dialog, you can:

  • Specify how to handle the multiple terms entered at same time, 1)Use AND: Satisfy them simultaneously or 2)Use OR: Satisfy any one of them.
  • Specify whether perform fuzzy search, that allows misspelled words.
  • Specify whether show the results compactly and show the preview when you hover the mouse on a sample.


Search Tool on Start Menu

In the Start menu, Origin applies a search tool for Origin recent files.

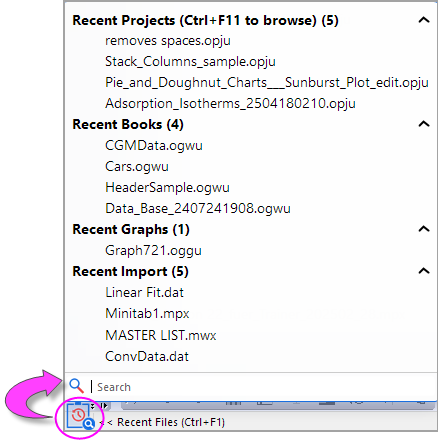

Search Tool on Start Menu.png

  • There is a magnifying-glass icon over an Origin logo at the left-bottom corner. Hover on the icon + logo with your mouse, then click on it, then it will pop up to show the recent items with a search tool.

or

  • Press the Ctrl+F1 button on your keyboard to pop-up it.


It contains 4 sections:

  • Recent Projects: Click the item to re-open the recent project file.
  • Recent Books: Click the item to re-open the recent workbook.
  • Recent Graphs: Click the item to re-open the recent graph.
  • Recent Import: Click the item to re-import the recently imported file.

Also, type in the edit box, you can search the recent items.
