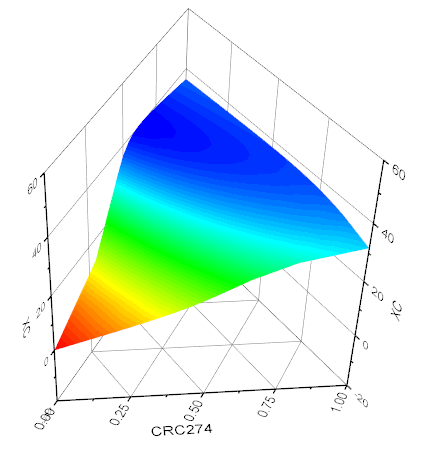

29.16.6 3D Ternary Colormap Surface

3d-ternary-colormap

Data Requirements

Select two Z columns (XYZZ) or a range of data from two Z columns (Z columns may be multiples of 2).

Creating the Graph

Highlight the source data and

select Plot > 3D : 3D Ternary Colormap Surface.

or

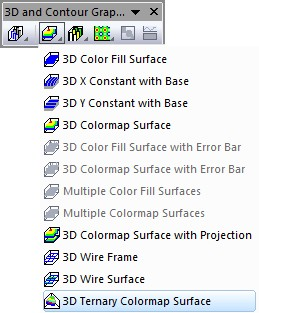

click the button in the 3D and Contour Graphs toolbar.

Template

• glcmapternary.otp (OpenGL only)

(Installed to the Origin program folder).

Notes

Unlike 3D graphs in the Cartesian coordinate system, there are four axes in the 3D ternary system, defined as X, Y, Z and Zh. The Zh axis is perpendicular to the plane of the triangle. Correspondingly, there will also be four axis planes: XY, YZh, ZhX and ZZh.

When you have a 3D ternary colormap surface plot, you can open the Plot Details dialog box (select Format: Plot) and change the Plot Type to 3D Scatter/Trajectory/Vector plot, to get a 3D scatter plot in the 3D ternary coordinate system. You can also add a 3D ternary scatter plot to an existing 3D ternary surface from the Layer Contents dialog.

For a 3D ternary colormap surface, it is only possible to use a color scale as the legend. However, with a 3D scatter plot, you could add other legend objects to the graph, such as the default legend, legend for categorical values and point by point legend.

The plot designation syntax in the legend substitution of 3D ternary scatter plot should then be X, Y, Z and Zh, and by default Zh will be used.
