8.12.7 The Layer Contents Dialog Box


Video Image.png See more related video:Using the Layer Contents Dialog

The Layer Contents dialog box is used to add or remove data plots from a graph layer, group and ungroup plots, and reorder (change the drawing order of) the data plots.

To open the Layer Contents dialog box:

  • Double-click on the layer icon in the upper-left corner of the graph window.
  • Select Graph: Layer Contents from main menu.
  • Right-click the Layer icon to select Layer Contents from the context menu.

Note: Prior to Origin 8.5, double-clicking on the graph layer icon would open the Plot Setup dialog box. You can restore this behavior in the current Origin session, by opening the Script window and typing @LID=1 <ENTER>. To make your change stick across Origin sessions, use the Set System Variables dialog box.

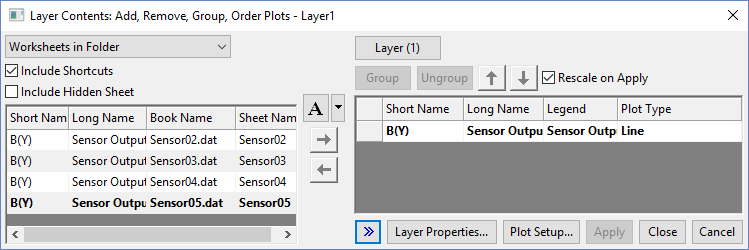

The Layer n Dialog Box 1.png

The left panel of the Layer Contents dialog box lists all available datasets. The right panel lists all datasets plotted in the layer.

To add a dataset to the current graph layer,

  1. Select desired dataset(s) in the left panel.
  2. Click the Button Select To Right.png button to add the selected dataset(s) to the right panel; or double-click the selected dataset in left panel to add to the right panel.
  3. Click the Apply button to keep the dialog open and update the graph.
  4. Click the Close button to close the dialog.

When you add a Y dataset to an existing graph via Layer Contents, you are also adding an associated X dataset. When adding a Z dataset to the graph, you are also adding the Z dataset's associated X and Y datasets. In any case, if no X column exists in the worksheet, Origin uses default X values. For more information, see Plot Designation.

Left Panel (Available Data)

Available Data Drop-Down List

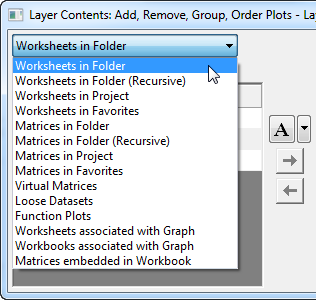

Use the drop-down to filter the contents of the list box:

Layer Contents dialog 1.png

Multiple options are provided to easily select desired datasets, including options such as Worksheets associated with Graph which will only list datasets that belong to the same worksheet as the ones currently plotted in the graph and Virtual Matrices which will list all existing virtual matrices in the Virtual Matrix Manager.

Additionally, since Origin 2018b, Origin supports to add matrices as sheets. Base on this, Origin provides one more option Matrices embedded in Workbook to list all embedded matrices in current workbook.

For how to create a custom condition filter in the drop-down list please refer to this page.

Note: Folder in Project has hierarchy, If you add graph in parent folder, then check the Layer Contents of the graph, you will find all the workbook both in parent folder and its sub folder in project listed when Worksheets in Folder(Recursive) is selected, in another case, you will find only workbook in parent folder listed when Worksheets in Folder is selected.


Include Shortcuts Check Box

Origin supports adding a shortcut to a window in another Project Explorer folder. When this check box is checked, shortcut windows in the current folder will be listed in the Available Datasets box.

For more details about shortcut windows, please refer to this page.

Include Hidden Sheet Check Box

Check this check box to list the hidden sheet(s) (if any) in the Available Datasets box with gray color.

For more details about showing/hiding a worksheet, please refer to this document.

Available Datasets list box

This list box display useful information of datasets in table form, such as workbook, worksheet, column labels, plot type, etc. You can:

Layer Contents Left Panel Context menu 2.png
  1. Right click in the column header area to customize what columns to display
  2. Click column header to sort the list using selected column
  3. Click and drag column header to rearrange order of columns
  4. Grab the drag the left edge of the dialog to re-size the left panel

The settings will be remembered when dialog is re-opened next time.

Notes:
  • Perform a nested sort by holding down SHIFT key before clicking on secondary column headers.
  • Setting system variable @SCCS = 1 changes to case-sensitive sort and Book1 > Book2 > Book3 will sort as Book1 > Book10 > Book2.

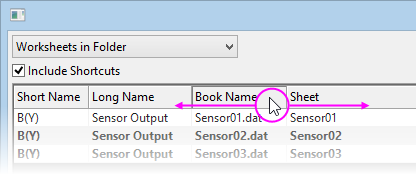

For better viewing of your data, you can reorder dialog box column headings by dragging with your mouse.

The Layer n Dialog Box col order.png
Auto Column Widths Auto-adjust the column widths
Folder Specify if show the folder which contains the datasets.
Book Name Check it, if there is book long name, show long name of the book. If there is no book long name, show short name of the book.
Book Long Name Specify if show the book long name in a column.
Book Short Name Specify if show the book short name in a column
Sheet Specify if show the sheet name.
Dataset Name Specify if show the dataset name.
Long Name Specify if show the dataset long name.
Short Name Specify if show the dataset short name.
Units Specify if show the units of datasets.
Comments Specify if show the comments of datasets.
1st Value Specify if show the 1st Value of datasets.
Status Specify if show the status of dataset, raw or locked.
Position Specify if show the position of the dataset in sheet.
[Book]Sheet!col Specify if show the range notation of the dataset.

Plot Type and Add/Remove Buttons

Plot Type button

Layer Contents Plot Type button2.png

The Plot Type combo button located between the left and right panels allows the user to specify the plot type to use when adding dataset(s) to the layer. The drop-down list can be used to select the available plot types. The default setting of Auto Layer Contents Plot Type button Auto.png will add the plot using applicable plot type, or using the plot type of the very first entry in the layer. E.g. When adding a Y dataset to layer with a line plot, the new plot will be added as a line plot. When a Z dataset is added to a 3D graph created from a matrix, the plot will be added as a 3D Line plot.

Add and Remove Dataset Buttons

The button Button Select To Right.png is used to add selected dataset(s) to current graph layer. The button Button Select To Left.png is used to removed the selected dataset(s) from current graph layer. Note that more than one dataset can be selected.

Right Panel

Rescale on Apply

Select this box to automatically rescale the layer axes to show all the data after the Layer Contents dialog box is closed. Leave check box unchecked to maintain the current axes scales.

Layer Contents List Box

This list box includes all datasets currently plotted in the layer.

To remove a dataset from the layer, highlight the dataset(s) in the Layer Contents list and Click the Button Select To Left.png button.

Note: If the datasets are part of a data plot group, the dataset names are prefaced with a gn notation, where n is the group number (see explanation under the Group/Ungroup).

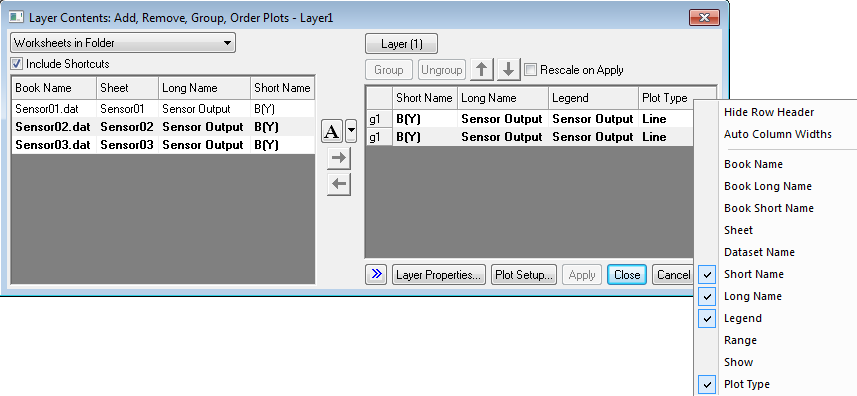

Right click on the column header area of this list to view a context menu:

Layer Contents dialog 2.png


Hide Row Header Check this item to hide the row header
Auto Column Widths Check this item to auto-adjust the column widths
Book Name Check it, if there is book long name, show long name of the book. If there is no book long name, show short name of the book.
Book Long Name Specify if show the book long name in a column.
Book Short Name Specify if show the book short name in a column
Sheet Specify if show the sheet name.
Dataset Name Specify if show the dataset name.
Long Name Specify if show the dataset long name.
Short Name Specify if show the dataset short name.
Legend Specify if show the legend text of datasets.
Range Specify if show the plot range of datasets.
Show Add a column contains Show check boxes to specify if show the dataset in the graph.
Plot Type Check this box to allow user to change Plot Type from the drop-down list .

Entries in the context menu can be used to customize the columns to be displayed in this list box. Options include Data Range which will display the row index range of the plot, and Plot Type. Click and drag column headers to rearrange the order of columns displayed in the list box.

Click on individual row entries under the Plot Type column to view a drop-down list of available plot types. Select from the drop-down list to change the current plot type. Note that for grouped plots only one drop-down will be available, allowing you to change the plot type of all members of the group simultaneously.

Buttons

Layer(n) Button

Layer Contents dialog 3.png

Click this button to switch to another layer or add a new layer.

To Switch to Another Layer
Click Layer(n) Button and continue to select Switch Layer option, then select a layer from the fly-out menu. Once switched, the index of switched layer will accordingly update Layer(n) Button.
To Create a New Layer
Click Layer(n) Button and continue to select New Layer option, then select a layer frame type from the fly-out menu to create a new layer.

Group and Ungroup Buttons

  • The Group button is only available when two or more datasets are highlighted in the right-hand panel.
  • The Ungroup button is only available when a group is highlighted in the right hand panel.


Situations where you would use these buttons:

  • You have added several datasets to the right panel and you want to group them so that plot properties are automatically incremented across datasets.
  • You have several grouped datasets in the right panel and you want to ungroup them so that you can remove one dataset from the layer.
  • You have a group in the right panel and you want to move another dataset into the right panel and add it to the group (hint: first ungroup, then group).


For information on plot groups and incrementing plot properties, see:

Up and Down Buttons

The plot drawing order is determined by the order of the datasets in the right panel of Layer Contents. Drawing order might affect how one plot obscures another, or the order in which increment lists are applied. Use these buttons to move individual or grouped datasets up or down and change the plotting order.

To Move a Data Plot to the Front of the layer:
  1. Select the dataset in the list.
  2. Move it to the bottom of the list using the Layer cotent.png button.
To Order Plots within a Group
  1. Single click on any of the datasets to highlight the group.
  2. Now click on the desired dataset to select it and use Button Layer Contents Up.png and Button Layer Contents Down.png button to rearrange the order.

or

  1. Click on the grouping identifier, eg., g1, on desired dataset row and keep mouse click pressed.
  2. Drag that dataset row and drop it where blue line appeared.
To Reorder Multiple Datasets by Group
  1. Single click on any of the datasets in desired group to highlight that group.
  2. Use Button Layer Contents Up.png and Button Layer Contents Down.png button to rearrange the order.

or
Click on one of the grouping identifiers, eg., g1, within the group and keep mouse click pressed to drag that group up and down to desired place.

Layer Properties Button

Click the Layer Properties button to open the Plot Details dialog box with the layer n icon selected in the left side of the dialog box. Edit the tabs in this dialog box to control layer properties.

Plot Setup button

Click the Plot Setup button to open the Plot Setup dialog box.

The Plot Setup dialog box provides an advanced interface for adding or removing datasets from your graph windows. This dialog allows adding datasets to plots without the need to change column Plot Designations.

To learn more about the Plot Setup dialog, see these topics in help page:
