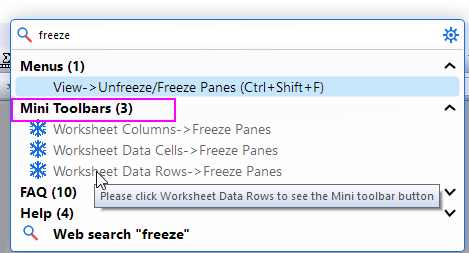

28.4 Mini Toolbar


By default, Mini Toolbars will appear when you select an object or click in certain key areas inside the page.
To hide the Mini Toolbars, you can uncheck the View:Mini Toolbars menu.

When you click the item in the Object Manager, it also will show the corresponding Mini Toolbars of the object.

Plots Type

For the Group plot, you can custom the plots properties togethter by the buttons under the Group tab. Popup Group Tab.png

Popup Ungroup.png Ungroup


Also, you can custom one plot properties by the buttons under the Single tab. Popup Single Tab.png

Scatter Plot

Popup Scatter Plot.png

Single Data Point
Popup Scatter Plot Single Point.png

Popup Scatter Symbol Edge Color.png Symbol Edge Color Popup Symbol Fill Color.png Symbol Fill Color
Popup Scatter Plot Symbol Style.png Plot Symbol Style Popup Scatter Symbol Size.png Symbol Size
Popup Scatter Symbol Size Increase.png Increase Symbol Size Popup Scatter Symbol Size Reduce.png Decrease Symbol Size
Popup Symbol Transparency.png Symbol Transparency Popup Scatter Show Data Labels.png Show Data Labels
Popup Set Levels.png Set Levels Popup Rescale Colormap.png Rescale Colormap
Popup Flip Colormap.png Flip Colormap Popup Copy Plot.png Copy Plot.

Then paste (Ctrl+V) into other layer as new plot.

For the group plots,

  • Under the Group tab, the Copy Plot button could copy all plots in the group.
  • Under the Single tab, the Copy Plot button only copy the selected single plot.
Popup Plot on Right Y.png Plot on Right Y Popup Plot on Left Y.png Plot on Left Y
Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Change Plot to.png Change Plot to

Popup Change Plot to List.png

Popup Add Fitted Curves.png Add Fitted Curves

Popup Add Fitted Curves List.png
Note:

Popup Selectable.png Selectable
Popup Hide Data Point.png Hide Data Point Popup Open Plot Details.png Open Plot Details

Line Plot

Popup Line Plot vNext.png

Popup Line Color.png Line/ Border Color Popup Line Thickness.png Line Thickness
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Scatter Show Data Labels.png Show Data Labels Popup Go to Source Sheet.png Go to Source Sheet
Popup Copy Plot.png Copy Plot

Then paste (Ctrl+V) into other layer as new plot.

For the group plots,

  • Under the Group tab, the Copy Plot button could copy all plots in the group.
  • Under the Single tab, the Copy Plot button only copy the selected single plot.
Popup Sort X.png Sort X
Popup Plot on Right Y.png Plot on Right Y Popup Plot on Left Y.png Plot on Left Y
Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Change Plot to.png Change Plot to

Popup Change Plot to List.png

Popup Add Fitted Curves.png Add Fitted Curves

Popup Add Fitted Curves List.png
Note

Popup Selectable.png Selectable
Popup Open Plot Details.png Open Plot Details

Column Plot

Popup Column Plot.png

Single column
Popup Column Plot Single Column.png

Popup Background Color.png Fill Color Popup Border Color.png Border Color
Popup Column Stack.png Column Stack

Click this button, you can select the stack methods in the list:
Popup Column Stack List.png

Popup Scatter Show Data Labels.png Show Data Labels
Popup Bars Gap Increase.png Larger Gap Popup Bars Gap Reduce.png Smaller Gap
Popup Plot on Right Y.png Plot on Right Y Popup Plot on Left Y.png Plot on Left Y
Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Change Plot to.png Change Plot to

Popup Change Plot to List.png

Popup Selectable.png Selectable Popup Hide Data Point.png Hide Data Point
Popup Open Plot Details.png Open Plot Details

Area Plot

Popup Area Plot.png

Popup Line Color.png Line/ Border Color Popup Background Color.png Fill Color
Popup Line Thickness.png Line Thickness Popup Open Plot Details.png Open Plot Details
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Plot on Right Y.png Plot on Right Y Popup Plot on Left Y.png Plot on Left Y
Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Change Plot to.png Change Plot to

Popup Change Plot to List.png

Popup Selectable.png Selectable Popup Open Plot Details.png Open Plot Details

Box Plot

Popup Box Plot.png

Data Type for Box Plot:
Popup Box Plot Data Type.png

Popup Box Style.png Box Style

Click this button, you can select the Box Style in the list:
Popup Box Style List.png

Popup Box Type.png Box Type

Click this button, you can select the Box Type in the list:
Popup Box Type List.png

Popup Box Line.png Box Line

Click this button, you can define which Box Line show in graph:
Popup Box Line List.png

Popup Box Whisker.png Box & Whisker

Click this button, you can customize the Box & Whisker
Popup Box Whisker List.png

Popup Gap Between Boxes Increase.png Larger Gap Popup Gap Between Boxes Reduce.png Smaller Gap
Popup Background Color.png Fill Color Popup Border Color.png Border Color
Popup Plot on Right Y.png Plot on Right Y Popup Plot on Left Y.png Plot on Left Y
Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Selectable.png Selectable
Popup Open Plot Details.png Open Plot Details

Histogram

Popup Histogram.png

Popup Background Color.png Fill Color Popup Border Color.png Border Color
Popup Increase Bin Number.png Bin Number +1 Popup Reduce Bin Number.png Bin Number -1
Popup Bin Settings.png Bin Settings

Popup Bin Settings dialog.png

Popup Curve Type.png Curve Type

Popup Curve Type List.png

Popup Gap Between Boxes Increase.png Larger Gap Popup Gap Between Boxes Reduce.png Smaller Gap
Popup Scatter Show Data Labels.png Show Data Labels Popup Go to Source Sheet.png Go to Source Sheet
Popup Plot on Right Y.png Plot on Right Y Popup Plot on Left Y.png Plot on Left Y
Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Selectable.png Selectable
Popup Open Plot Details.png Open Plot Details

Pie Plot

Popup Pie Plot.png

Popup Pie Plot Wedge.png

Popup Background Color.png Fill Color Popup Border Color.png Border Color
Popup Pie Rotate Clockwise.png Rotate Pie Plot Clockwise Popup Pie Rotate Counterclockwise.png Rotate Pie Plot Counterclockwise
Popup Scatter Show Data Labels.png Show Data Labels Popup Pie ShowDoughnut.png Show Doughnut
Popup Pie Doughnut Hole Increase.png Larger Hole Popup Pie Doughnut Hole Reduce.png Smaller Hole
Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Selectable.png Selectable
Popup Pie Explode.png Explode Popup Hide Data Point.png Hide Data Point
Popup Open Plot Details.png Open Plot Details

2D & 3D Vector Plot

Popup Vector Plot.png

Popup Line Color.png Line/ Border Color Popup Line Thickness.png Line Thickness
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Scatter Show Data Labels.png Show Data Labels Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Vector Larger Angle.png Vecotr Arrow Angle + 15 Popup Vector Smaller Angle.png Vecotr Arrow Angle - 15
Popup Vector Larger Length.png Vecotr Arrow Length + 10 Popup Vector Smaller Length.png Vecotr Arrow Length - 10
Popup Selectable.png Selectable Popup Open Plot Details.png Open Plot Details

Contour & Heatmap

Contour:
Popup Contour Plot.png

Heatmap:
Popup Heatmap.png

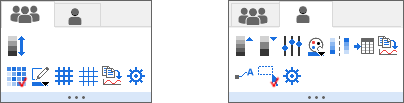

Heatmap with Split Tiles
Popup HeatmapWithSplitTiles.png

Popup Contour Plot Major Levels Plus 1.png Major Level +1 Popup Contour Plot Major Levels Minus 1.png Major Level -1
Popup Set Levels.png Set Levels Popup Rescale Colormap.png Rescale Colormap
Popup Palettes.png Palettes

Click the button to select palettes in the dropdown list

Popup Flip Colormap.png Flip Colormap
Popup Contour Style.png Contour Style

Popup Contour Style List.png

Popup Heatmap Add Grid Lines.png Add Grid Lines in Heatmap
Popup Increase Grid Line Thickness.png Increase Grid Line Thickness Popup Decrease Grid Line Thickness.png Decrease Grid Line Thickness
Popup Scatter Show Data Labels.png Show Contour Labels / Show Data Labels Popup Font Size.png Label Font Size
Popup Heatmap Font Size Increase.png Increase Font Size Popup Heatmap Font Size Reduce.png Decrease Font Size
Popup Reposition Labels.png Reposition Labels Popup Annotate Min&Max Value.png Annotate Min&Max Value

To annotate the data points at max and min Z values.

Popup Copy Plot.png Copy Plot

Then paste (Ctrl+V) into other layer as new plot.

Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Selectable.png Selectable Popup Go to Source Sheet.png Go to Source Sheet
Popup Open Plot Details.png Open Plot Details

Error Bar

2D Error Bar:
Popup Error Bar.png

3D Error Bar:
Popup 3D Error Bar.png

Popup Line Color.png Line/ Border Color Popup Line Thickness.png Line Thickness
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Cap Width Increase.png Larger Cap Width Popup Cap Width Reduce.png Smaller Cap Width
Popup Error Bar Fill Area.png Fill Area Popup Background Color.png Fill Color

If select Fill Area, the fill color of error bar area can be customize by this button.

Popup Error Bar Direction.png Y Error Bar Direction

Popup Error Bar Direction List Y.png

Popup Error Bar Direction X.png X Error Bar Direction

Popup Error Bar Direction List X.png

Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup 3D Error Bar Cap.png Cap Line of 3D Error Bar:

Popup 3D Error Bar Cap List.png

Popup Selectable.png Selectable Popup Open Plot Details.png Open Plot Details

3D Scatter Plot

Popup 3D Scatter Plot.png

Single Data Point
Popup 3D Scatter Plot Single Point.png

Popup Scatter Symbol Edge Color.png Symbol Edge Color Popup 3D Symbol.png 3D Symbol Style

Popup 3D Symbol List.png

Popup Scatter Symbol Size Increase.png Increase Symbol Size Popup Scatter Symbol Size Reduce.png Decrease Symbol Size
Popup Scatter Symbol Size.png Symbol Size Popup 3D Scatter Connect Symbol.png Enable Connection Line between symbols
Popup Line Color.png Connection Line Color Popup Line Thickness.png Connection Line Thickness
Popup Line Thickness Increase.png Increase Connection Line Thickness Popup Line Thickness Reduce.png Decrease Connection Line Thickness
Popup 3D Symbol Projection.png Enable Projection on following planes:

Popup 3D Symbol Projection List.png

Popup Scatter Show Data Labels.png Show Data Labels
Popup Edit Range.png Edit Range

Popup 3D Edit Range Dialog.png

Popup Change Plot to.png Change Plot to

Popup 3D Scatter Change Plot to List.png

Popup Open Plot Details.png Open Plot Details

3D Bar Plot

Popup 3D Bar Plot.png

Popup Background Color.png Fill Color Popup Border Color.png Border Color
Popup 3D Bar Shape.png Bar Shape:

Popup 3D Bar Shape List.png

Popup Scatter Show Data Labels.png Show Data Labels
Popup Bars Gap Increase.png Larger Gap Popup Bars Gap Reduce.png Smaller Gap
Popup Change Plot to.png Change Plot to

Popup 3D Bar Plot Change Plot to List.png

Popup Edit Range.png Edit Range

Popup 3D Bar Edit Range Dialog.png

Popup 3D Bar Column Stack.png Column Stack

Click this button, you can select the stack methods in the list:
Popup 3D Bar Column Stack List.png

Popup Open Plot Details.png Open Plot Details

XYY 3D Bar Plot

One plot in the graph:
Popup XYY 3D Bar Plot.png
Single Bar
Popup XYY 3D Bar Single Bar.png

Multiple plots in the graph:
Popup XYY 3D Bar Multiple Plots.png

Popup XYY 3D Bar Single Plot.png
Popup Background Color.png Fill Color Popup Border Color.png Border Color
Popup 3D Bar Shape.png Bar Shape:

Popup 3D Bar Shape List.png

Popup Scatter Show Data Labels.png Show Data Labels
Popup Change Plot to.png Change Plot to

Popup Ribbon Wall Scatter Change Plot to List.png

Popup 3D Bar Column Stack.png Column Stack

Click this button, you can select the stack methods in the list:
Popup 3D Bar Column Stack List XYY.png

Popup Bars Gap Increase.png Gap Width + 5% Popup Bars Gap Reduce.png Gap Width - 5%
Popup 3D Bars Z Width Percentage Increase.png Increase bar width in Z direction Popup 3D Bars Z Width Percentage Decrease.png Decrease bar width in Z direction
Popup Edit Range.png Edit Range

Popup Edit Range Dialog.png

Popup Open Plot Details.png Open Plot Details

3D Ribbon & 3D Wall

One plot in the 3D Ribbon & Wall graph:
Popup Single Wall Ribbon.png

Multiple plots in 3D Ribbon graph:
Popup 3D Ribbon.png
Multiple plots in 3D Wall graph:
Popup 3D Wall.png


Popup Background Color.png Fill Color
Popup 3D Bars Z Width Percentage Increase.png Outline Width + 5% Popup 3D Bars Z Width Percentage Decrease.png Outline Width - 5%
Popup XYY 3D Bar Column Stack.png Column Stack

Click this button, you can select the stack methods in the list:
Popup Ribbon Wall Column Stack List.png

Popup Change Plot to.png Change Plot to

Popup Ribbon Wall Scatter Change Plot to List.png

Popup Line Color.png Border Line Color Popup Line Thickness.png Border Line Thickness
Popup Line Thickness Increase.png Increase Border Line Thickness Popup Line Thickness Reduce.png Decrease Border Line Thickness
Popup Edit Range.png Edit Range

Popup 3D Edit Range Dialog.png

Popup Open Plot Details.png Open Plot Details

3D Surface

Popup Surface Plot.png

Popup Contour Plot Major Levels Plus 1.png Major Level +1 Popup Contour Plot Major Levels Minus 1.png Major Level -1
Popup Set Levels.png Set Levels Popup Rescale Colormap.png Rescale Colormap
Popup Palettes.png Palettes

Click to select palettes in the dropdown list

Popup Flip Colormap.png Flip Colormap
Popup Surface Enable Mesh.png Enable Mesh Lines Popup Change Plot to.png Change Plot to

Popup 3D Surface Change Plot to List.png

Popup Open Plot Details.png Open Plot Details

Axis

Axis

Popup Axis.png

Popup Axis Scale.png Axis Scale

Click this button, you can define the Axis Scale in this popup dialog:
Popup Axis Scale Dialog.png

Popup Rescale Axis.png Rescale Axis
Popup Axis Show Gridlines.png Show Gridlines

Click this button, you can define whether to show the Major or Minor gridlines
Popup Axis Show Gridlines List.png

Popup Axis Tick Style.png Axis Tick Style

Click this button, you can define the Axis Tick Style in the list:
Popup Axis Tick Style List.png

Popup Axis Tick Length Increase.png Longer Ticks Popup Axis Tick Length Reduce.png Shorter Ticks
Popup Axis Show Opposite Axis.png Show Opposite Axis Popup Add Secondary Axis.png Add Secondary Axis

Click this button, you can select the type of the Double-Y axis, and customize the formula.
Popup Add Secondary Axis dialog.png

Popup Axis Show Tick Labels.png Show Tick Labels Popup Hide Selected Object.png Hide Selected Object
Popup Add Reference Line.png Add Reference Line

Click this button to open the Reference Line dialog. You can customize the Reference Line position and format in this dialog.
Popup Reference Line dialog.png

Popup Apply Formatting to.png Apply Formatting to...

Apply formatting of this object to other objects of this type

Apply formatting to This Layer
Popup Apply Formatting to This Layer.png

Apply formatting to This Window
Popup Apply Formatting to This Window.png

Popup Open Dialog.png Open Axis dialog

Popup Aixs Dialog List.png

Axis Tick Labels

Popup Axis Tick Lables.png

Popup Set Font.png Set Font Popup Font Size.png Font Size
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Font Color.png Font Color Popup Bold.png Bold
Popup Rotate Clockwise.png Rotate Clockwise Popup Rotate Counterclockwise.png Rotate Counterclockwise
Popup Wrap Text.png Wrap Text

Adjust width to see the wrapping effect

Popup Hide Selected Object.png Hide Selected Object
Popup Apply Formatting to.png Apply Formatting to...

Apply formatting of this object to other objects of this type.

Apply formatting to This Layer
Popup Apply Formatting to This Layer 2.png

Apply formatting to This Window
Popup Apply Formatting to This Window 2.png

Popup Open Properties Dialog.png Open Properties Dialog

Axis Title

Popup Axis Title.png

Popup Set Font.png Set Font Popup Font Size.png Font Size
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Font Color.png Font Color Popup Bold.png Bold
Popup Rotate Clockwise.png Rotate Clockwise Popup Rotate Counterclockwise.png Rotate Counterclockwise
Popup Wrap Text.png Wrap Text

Adjust width to see the wrapping effect

Popup Hide Selected Object.png Hide Selected Object
Popup Apply Formatting to.png Apply Formatting to...

Apply Formatting of this object to other objects of this type.

Apply formatting to This Layer
Popup Apply Formatting to This Layer 2.png

Apply formatting to This Window
Popup Apply Formatting to This Window 2.png

Popup Link to Substitution.png Link to Substitution
Popup Open Properties Dialog.png Open Properties Dialog

Axis Break

Popup Axis Break.png

Popup Larger Break Length.png Larger Break Length Popup Smaller Break Length.png Smaller Break Length
Popup Larger Break Gap.png Larger Break Gap Popup Smaller Break Gap.png Smaller Break Gap
Popup Connect Line Across Axis Break.png Connect Line Across Axis Break Popup Connect Column Bar across Axis Break.png Connect Column/Bar across Axis Break
Popup Keep Line Trend.png Keep Line Trend as if no Axis Break Popup Axis Beak Symbol.png Axis Beak Symbol

Popup Axis Beak Symbol List.png

Popup Use Proportional Unit.png Use Proportional Unit for Axis Break Position Popup Plot Break Symbol.png Plot Break Symbol
Popup Break Bar Border.png Break Bar Border


Reference Lines

Move the cursor to the reference Lines/ the pattern filled between reference Lines, and then click on it. The mini toolbar below will appear:

Reference Lines
Popup Reference Lines.png

Popup Line Color.png Line/ Border Color Popup Line Thickness.png Line Thickness
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Line Style.png Line Style Popup Fill to.png Fill to

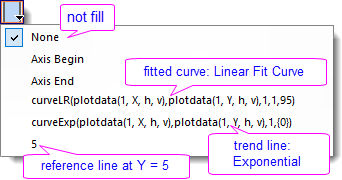

Popup Fill to List.png

Popup Scatter Show Data Labels.png Show Labels Popup Data Label Position.png Label Position

Popup Reference Lines Label Position.png

Popup Hide Selected Object.png Hide Selected Object Popup Back data.png Back (data)
Popup Open Properties Dialog.png Open Properties Dialog


The pattern filled between reference Lines
Popup Pattern Reference Lines.png

Popup Background Color.png Fill Color Popup Symbol Transparency.png Transparency
Popup Show Line for Begin.png Show Line for Begin Popup Show Line for End.png Show Line for End
Popup Front data.png Front (data) Popup Open Properties Dialog.png Open Properties Dialog

Data Label

Popup Data Label.png

Popup Set Font.png Set Font Popup Font Size.png Font Size
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Font Color.png Font Color Popup Bold.png Bold
Popup Data Label Source Button.png Label Source
Scatter, Column/Bar...

> 1 point labeled

Scatter, Column/Bar...

only 1 point labeled

Popup Data Label Show List.png Popup Data Label Show 1.png
Histogram Stacked Column
Popup Data Label Show List Histogram.png Popup Data Label Show Lit StackCol.png
Popup Data Label Position.png Position
Scatter Column / Bar / Histogram
Popup Data Label Position List Scatter.png Popup Data Label Position List Column.png
Dendrogram Circular Dendrogram
Popup Data Label Position List Dendrogram.png Popup Data Label Position List Dendrogram2.png
Popup Rotate Clockwise.png Rotate Clockwise Popup Rotate Counterclockwise.png Rotate Counterclockwise
Popup Leader Lines.png Leader Lines

Popup Leader Lines dialog.png

Popup Hide Selected Object.png Hide Selected Object
Popup Apply Formatting to.png Apply Formatting to...

Apply Formatting of this object to other objects of this type
You can select Color or Font in this list.

Popup Open Plot Details.png Open Plot Details

Graph Layer

Click the space area within the layer frame to pop up the mini toolbar for graph layer:

2D Layer

Popup Graph Layer.png

Popup Rescale.png Rescale Popup Layer Frame.png Layer Frame

Hide / Show Layer Frame

Popup Axes Arrangements.png Axes Arrangements

Click this button, you can select the Axes Arrangements in the list:
Popup Axes Arrangements List.png

Popup Background Color.png Layer Background Color
Popup Hide Others.png Hide Other Layers Popup Apply Formatting to.png Apply Formatting to...

Apply Formatting of this object to other objects of this type
Popup Apply Formatting to Layer.png

Popup Show Legend.png Legend Popup Isometric.png Set XY axis scale to have the same length in pixels for the same linearized scale range.
Popup Add Layer Title.png Add Layer Title Popup Add Plot.png Add Plot

Popup Add Plot List.png

Popup Show Date Plots.png Show Data Plots

Show and Hide Plots in the Layer

Popup Add Stats Reference Lines.png Add Stats Reference Lines

Popup Add Stats Reference Lines List.png

Popup Clip Data to Frame.png Clip Data to Frame

Popup Clip Data to Frame List.png

Popup Open Image.png If the layer has a background image, click to open it in a separated image window.
Popup Auto Rescale.png Auto Rescale Popup Selectable.png Selectable
Popup Auto Rescale Background Image.png Available only when the graph has a background image inserted from an Image window.

Check this button to auto-rescale graph when the coordinates of the background image is changed.

Popup Open Dialog.png Open dialog

Popup Layer Dailogs List.png

3D Layer

Popup 3D Graph Layer.png

Popup 3D Layer Resize Mode.png Clidk to resize layer frame Popup Pie Rotate Clockwise.png Click to rotate layer frame
Popup Rescale.png Rescale Popup Add Plane.png Show/Hide Planes:

Popup Add Plane List.png
Select Additional Plane to open dialog:
Popup Add Additional Plane.png

Popup Grid Lines.png Show grid lines on following plane(s)

Popup Grid Lines List.png

Popup Add Plot.png Add Plot

Popup 3D Add Plot List.png

Popup Show Date Plots.png Show/Hide Plots in the Layer Popup Orientation of Lables Title Ticks.png Orientation of axis ticks and lables:

Popup Orientation of Lables Title Ticks List.png

Popup Layer Cube.png Show/Hide Cube Frame

Popup Layer Cube List.png

Popup Auto Rescale.png Auto Rescale

Popup Auto Rescale List.png

Popup Add Layer Title.png Add Layer Title Popup Open Dialog.png Open dialog

Popup Layer Dailogs List.png

Graph Page

Move the cursor to the page edge, click the edge or gray area outside the graph page when the cursor turns to Page cursor.png. The mini toolbar below will appear:

2D
Popup Graph Page.png

3D
Popup 3D Graph Page.png

Popup Show Locks.png Show Locks

Show Recalculation Locks

Popup Show Analysis Marker.png Show/ Hide Analysis Marker
Popup Show Grids.png Show Grids

Popup Show Grids List.png

Select Page Grids Settings... to open this dialog.
Popup Grid Settings dailog.png

Popup Toggle Tooltip.png Toggle data point or data plot tooltip
Popup Increase Grid Spacing.png Increase Grid Spacing Popup Decrease Grid Spacing.png Decrease Grid Spacing
Popup Speed Mode Banner.png Show/ Hide Speed Mode Banner Popup Layer Icons.png Show/ Hide Layer Icons
Popup Show Active Layer by Layer Icon Only.png Set Active Layer by Layer Icon Only Popup Show Active Layer Only.png Show Active Layer Only
Popup Axis Icons.png Show/ Hide Axis Icons Popup Show Active Layer Indicator.png Show Active Layer Indicator
Popup Copy Graph.png Copy Graph as Image... Popup Add Page Title.png Add Page Title
Popup Dense Data Plot.png Dense Data Plot

Cache data plots as an image to allow quick changes to labels etc. Refresh graph to update images.

Popup Window View.png Window View
Popup Center Layer to Page.png Center Layer(s) to Page Popup Fit Page to Layers.png Fit Page to Layers

Click this button to open Fit Page to Layers dialog

Popup Graph Browser.png Column Switching Browser Graph Popup Sheet Book Switching Browser Graph.png Sheet/Book Switching Browser Graph
Popup Arrange Layers.png Arrange Layers Popup highlight plot when mouse over.png Highlight plot when mouse over
Popup Common Display.png Check following properties to apply customizations to all layers:

Popup Common Display List.png

Popup Add Label for Layers.png Add Label for Layers

Open the dialog to add labels to layers in a graph.
In this dialog, you can customize the labels type, position and font style.
Popup Label Layers dailog.png

Popup Reverse Colors.png Reverse Colors Popup Open Properties Dialog.png Open Properties Dialog

Layout Page

Move the cursor to the page edge, click the edge or gray area outside the page when the cursor turns to Page cursor.png. The mini toolbar below will appear:

Popup Layout Page.png

Popup Show Grids.png Show Grids

Popup Show Layout Grids List.png

Popup Slide View.png Turn on/off Slide View (no border shown)
Popup Increase Grid Spacing.png Increase grid spacing Popup Decrease Grid Spacing.png Decrease grid spacing
Popup Graph Selectable.png Enable/Disable embedded graph selection Popup Open Properties Dialog.png Open Properties Dialog

Object

Text Object

Including: Text, Annotation

Popup Text Object.png

Popup Set Font.png Set Font Popup Font Size.png Font Size
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Font Color.png Font Color Popup Bold.png Bold
Popup Wrap Text.png Wrap Text

Adjust width to see the wrapping effect

Popup Alignment.png Alignment

Popup Alignment list.png

Popup Rotate Clockwise.png Rotate Clockwise Popup Rotate Counterclockwise.png Rotate Counterclockwise
Popup Apply Formatting to.png Apply Formatting to...

Apply Formatting of this object to other objects of this type
You can select Color or Font in this list.

Popup Link to Substitution.png Link to Substitution
Popup Selectable.png Selectable Popup Open Properties Dialog.png Open Properties Dialog

Graph Page/ Layer Title

Popup Page Title.png

Popup Set Font.png Set Font Popup Font Size.png Font Size
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Font Color.png Font Color Popup Box Width.png Box Width

Popup Text Box Width Dialog.png

Popup Bold.png Bold Popup Wrap Text.png Wrap Text

Adjust width to see the wrapping effect

Popup Rotate Clockwise.png Rotate Clockwise Popup Rotate Counterclockwise.png Rotate Counterclockwise
Popup Alignment.png Alignment

Popup Alignment list.png

Popup Apply Formatting to.png Apply Formatting to...

Apply Formatting of this object to other objects of this type
You can select Color or Font in this list.

Popup Link to Substitution.png Link to Substitution Popup Open Properties Dialog.png Open Properties Dialog

Legend

Popup Legend.png

Popup Set Font.png Set Font Popup Font Size.png Font Size
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Font Color.png Font Color Popup Frame.png Frame
Popup Reconstruct Legend.png Reconstruct Legend Popup Legend Translation Mode.png Data Plot Legend Translation Mode

Popup Legend Translation Mode list.png
Select Custom to open Update Legend dialog.

Popup Reverse.png Reverse Popup Arrange in Horizontal.png Arrange in Horizontal
Popup Show Hide.png Show/Hide

Popup Show Hide list.png

Popup Attach to Plots.png Attach to Plots
Popup Wrap Text.png Wrap Text Popup Indicate Active Dataset.png Indicate Active Dataset
Popup Open Properties Dialog.png More

Legend Symbol

Popup Legend Symbol.png

Popup Larger Symbol Width.png Larger Symbol Width Popup Smaller Symbol Width.png Smaller Symbol Width
Popup Scatter Symbol Size Increase.png Increase Scatter Symbol Size Popup Scatter Symbol Size Reduce.png Decrease Scatter Symbol Size
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Larger Pattern Block Width.png Larger Pattern Block Width Popup Smaller Pattern Block Width.png Smaller Pattern Block Width
Popup Larger Pattern Block Height.png Larger Pattern Block Height Popup Smaller Pattern Block Height.png Smaller Pattern Block Height
Popup Open Properties Dialog.png Open Properties Dialog

Color Scale

Popup Color Scale.png

Popup Show Head and Tail Level.png Show Head and Tail Level Popup Show Title.png Show Title
Popup Contour Plot Major Levels Plus 1.png Major Level +1 Popup Contour Plot Major Levels Minus 1.png Major Level -1
Popup Range Label.png Range Label Popup Decimal Places.png Decimal Places

Popup Decimal Places List.png

Popup Separate Layout.png Separate Layout Popup Flip Colormap.png Reverse Order
Popup Arrangement.png Arrangement Popup MaxMin Levels.png Max&Min Levels
Popup Open Properties Dialog.png Open Properties Dialog


Bubble Scale

Popup Bubble Scale.png

Popup Add Level.png Add Level Popup Delete Level.png Delete Level
Popup Larger Symbol Gap.png Larger Symbol Gap Popup Smaller Symbol Gap.png Smaller Symbol Gap
Popup Layout.png Layout

Popup Layout list.png

Popup Digits.png Digits
Popup Bubble Style.png Bubble Style Popup Show Title.png Show Title
Popup Open Properties Dialog.png Open Properties Dialog

Draw Object

Line/ Arrow / Curve Arrow / Angle Annotation

Popup Arrow Object.png

Popup Angle Annotation.png

Popup Line Color.png Line/ Border Color Popup Line Thickness.png Line Thickness
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Line Style.png Line Style

Popup Line Style List.png

Popup Open Properties Dialog.png Open Properties Dialog
Popup Begin Arrow Shape.png Begin Arrow Shape

Popup Begin Arrow Shape List.png

Popup End Arrow Shape 2.png End Arrow Shape

Popup End Arrow Shape List.png

Popup Larger Arrow Width.png Larger Arrow Width Popup Smaller Arrow Width.png Smaller Arrow Width
Popup Larger Arrow Length.png Larger Arrow Length Popup Smaller Arrow Length.png Smaller Arrow Length
Popup Rotate Clockwise.png Rotate Clockwise Popup Rotate Counterclockwise.png Rotate Counterclockwise
Popup Arrow on Arc.png Arrow on Arc Popup Edit Points.png Edit Points

Other Draw Object

Including: Polyline, Curve, Freehand Draw, Rectangle, Circle, Polygon and Region object.

Popup Other Draw Object.png

Popup Line Color.png Line/ Border Color Popup Line Thickness.png Line Thickness
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Background Color.png Fill Color Popup Symbol Transparency.png Transparency
Popup Edit Points.png Edit Points Popup Front.png Front
Popup Back.png Back Popup Forward.png Forward
Popup Backward.png Backward Popup Back data.png Back (data)
Popup Rotate Clockwise.png Rotate Clockwise Popup Rotate Counterclockwise.png Rotate Counterclockwise
Popup Open Properties Dialog.png Open Properties Dialog

Asterisk Bracket

Asterisk brackets added by the Add Object to Graph toolbar, can be edited using this Mini Toolbar.

Popup Asterisk Bracket.png
Popup Line Color.png Line/ Border Color Popup Line Thickness.png Line Thickness
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup AsterBracket Top.png Top (Orientation) Popup AsterBracket Bottom.png Bottom (Orientation)
Popup AsterBracket Left.png Left (Orientation) Popup AsterBracket Right.png Right (Orientation)
Popup Bracket Type.png Bracket Type

Popup Bracket Type list.png

Multiple Objects

When select multiple Text or Draw objects (not only Text objects), you can use this Mini Toolbar to control their position.

Select multiple ungroup objects:
Popup Multiple Objects.png

Select the grouped objects:
Popup Multiple Objects Grouped.png

Popup Left Alignment.png Left Alignment Popup Right Alignment.png Right Alignment
Popup Top Alignment.png Top Alignment Popup Bottom Alignment.png Bottom Alignment
Popup Horizontal Alignment.png Horizontal Alignment Popup Vertical Alignment.png Vertical Alignment
Popup Uniform Width.png Uniform Width (rectangles, ellipses, and UIM objects) Popup Uniform Height.png Uniform Height (rectangles, ellipses, and UIM objects)
Popup Distribute Horizontally.png Distribute Horizontally Popup Distribute Vertically.png Distribute Vertically
Popup Group.png Group Popup Ungroup.png Ungroup
Popup Front.png Front Popup Back.png Back
Popup Forward.png Forward Popup Backward.png Backward
Popup Back data.png Back (data)


Note: If you just select multiple ungroup Text objects, the Mini Toolbar shows:
Popup Multiple Text Objects.png

Popup Font Size.png Font Size
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Rotate Clockwise.png Rotate Clockwise Popup Rotate Counterclockwise.png Rotate Counterclockwise

XY Scaler

Popup XY Scaler.png

Popup Scales.png Scales

Popup Scales List.png

Popup Font Size.png Font Size
Popup Factor of X increment.png Factor of X increment Popup Factor of Y increment.png Factor of Y increment
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Line Color.png Line/ Border Color Popup Line Thickness.png Line Thickness
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Scaler Larger Arrow Width.png Larger Arrow Width Popup Scaler Smaller Arrow Width.png Smaller Arrow Width
Popup Open Properties Dialog.png Open Properties Dialog


Axis Scrollbar

Popup Axis Scrollbar.png

Popup Zoom In Axis Range.png Zoom In Axis Range Popup Zoom Out Axis Range.png Zoom Out Axis Range
Popup Zoom In Scroll Range.png Zoom In Scroll Range Popup Zoom Out Scroll Range.png Zoom Out Scroll Range
Popup Reset.png Reset Popup Open Properties Dialog.png Open Properties Dialog


Data selector/ Regional Data Selector

Popup Data Selector.png

Popup Set Display Range.png Set Display Range Popup Remove Selector.png Remove Selector
Popup Copy Data for All Selectors.png Copy Data for All Selectors Popup Copy Data.png Copy Data
Popup Clear Data.png Delete Data

Analysis Marker

Popup Analysis Marker.png

Popup Marker Size.png Marker Size


Table

Popup Table.png

Popup Table Style.png Table Style

Popup Table Style list.png

Popup Column Label.png Column Label

Popup Column Label list.png

Popup quantities in table.png Quantities in Table Popup Header Fill Color.png Header Fill Color
Popup Background Color.png Cell Fill Color Popup Color for Banded Row.png Color for Banded Row
Popup Border Color.png Border Color Popup Line Thickness.png Border Width
Popup Line Thickness Increase.png Increase Line Thickness Popup Line Thickness Reduce.png Decrease Line Thickness
Popup Set Font.png Set Font Popup Font Size.png Font Size
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Font Color.png Font Color Popup table digits.png Digits

Selection Region to Zoom

When the cursor is on Pointer mode Button Pointer.png, select a rectangle region (red border) inside a graph layer, then this Mini Toolbar will show.

Popup Selection Region.png

Popup Scale In.png Scale In Popup Enlarge to Separate Graph.png Enlarge to Separate Graph

WorkSheet

Worksheet

Go to the last column in current worksheet, move the cursor to the edge of the worksheet, click the gray area when the cursor turns to Page cursor.png. The mini toolbar below will appear:
Popup Worksheet.png

Popup Unhide Columns.png Unhide Columns Popup Column List View.png Column List View
Popup Show Formulas.png Show Formulas.png Popup Show Category Indices.png Show Category Indices
Popup Banded Rows.png Turn on banded rows Popup Banded Rows Color.png Open the Worksheet Banded Rows Color dialog.
Available only when banded rows is turned on Popup Banded Rows checked.png

Worksheet Banded Rows Color dialog.png

Popup Clear Worksheet.png Select from sub-menu to clear formats (bold, fill color, etc.), contents, inserted notes, or all above in the worksheet.
Popup Clear List.png
Popup Add Column.png Add Column
Popup Find.png Open simple dialog to search in worksheet Popup Sheet Notes.png Open Sheet Notes dialog to add comments and tab color to current sheet
Popup Protect Sheet.png Open the Protect Sheet Options dialog

Protect Sheet Options Dialog.png

Popup Open Dialog.png Open Properties dialog

Popup Worksheet Properties Dialogs List.png

Popup Unfreeze Panes.png Unfreeze panes in the Worksheet

Single Column

Click the column header to select the column. The mini toolbar below will appear:

Text Text & Numeric / Numeric
Popup Single Column.png Popup Single Column Numeric Format.png
Date Time
Popup Single Column Date Format.png Popup Single Column Time Format.png
Color
Popup Single Column Color Format.png
Popup Hide Columns.png Hide Column(s) Popup Resize to Show All.png Resize to Show All
Popup Sort Worksheet Ascending.png Sort Worksheet Ascending Popup Find.png Find
Popup Add Sparkling.png Add Sparkling Popup Categorical.png Categorical
Popup Sampling Interval.png Sampling Interval

Set begin and increment x value so separate X column will not be needed.

Popup Copy for Plotting.png Copy for Plotting
Popup Delete.png Delete Popup Insert.png Insert
Popup Set as X.png Set as X Popup Set as Y.png Set as Y
Popup Set as Z.png Set as Z
Popup Set as X Err.png Set_as X Err Popup Set as Y Err.png Set as Y Err
Popup Set as Disregard.png Set as Disregard Popup Digits.png Digits
Popup Date.png Date Popup Time.png Time
Popup Fix Time Wrap Around.png Fix Time Wrap Around
Popup Save As Increment List.png Save As Increment List Popup Load Color.png Load Color
Popup Freeze Panes.png Freeze the selected column Popup Unfreeze Panes.png Unfreeze panes
Popup Define Name.png Define named range Popup Open Properties Dialog.png Open Column Properties

Multiple Columns

Press the left key of mouse to select the first column and drag-and-drop to select multiple columns. The mini toolbar below will appear:
Popup Multiple Columns.png

Popup Hide Columns.png Hide Columns Popup Resize to Show All.png Resize to Show All
Popup Find.png Find Popup Add Sparkling.png Add Sparkling
Popup Categorical.png Categorical Popup Sampling Interval.png Sampling Interval

Set begin and increment x value so separate X column will not be needed.

Popup Copy for Plotting.png Copy for Plotting

Single Row

Click the row header to select the row. The mini toolbar below will appear:
Popup Single Row.png

Popup Hide Row.png Hide Popup Unhide Rows.png Unhide Row
Popup Mask Unmask Data.png Mask/ Unmask Data Popup Delete.png Delete
Popup Freeze Panes.png Freeze the selected row Popup Unfreeze Panes.png Unfreeze panes
Popup Move to Long Name.png Move to Long Name Popup Move to Units.png Move to Units
Popup Move to Comment.png Move to Comment Popup Move to User Defined Label.png Move to User Defined Label
Popup Insert.png Insert Popup Delete Rows Before.png Delete all data rows before the selected row.
Popup Move Row Up.png Move selected row up Popup Move Row Down.png Move selected row down
Popup Box of Source Data.png Available when a row in result sheet (DescStatsQuantities) of Statistics on Whole Sheet is selected. Click this button to create a box chart from the source data column of the selected row. Popup Histogram of Source Data.png Available when a row in result sheet (DescStatsQuantities) of Statistics on Whole Sheet is selected. Click this button to create histogram from the source data column of the selected row.
Popup Probability Plot of Source Data.png Available when a row in result sheet (DescStatsQuantities) of Statistics on Whole Sheet is selected. Click this button to create a P-P plot from the source data column of the selected row.

Multiple Rows

Press the left key of mouse to select the first row and drag-and-drop down to select multiple rows. The mini toolbar below will appear:
Popup Multiple Rows.png

Popup Hide Row.png Hide Popup Unhide Rows.png Unhide Row
Popup Mask Unmask Data.png Mask/ Unmask Data Popup Delete.png Delete
Popup Freeze Panes.png Freeze the selected row Popup Unfreeze Panes.png Unfreeze panes
Popup Insert.png Insert Popup Delete Rows Before.png Delete all data rows before the selected row.
Popup Move Row Up.png Move selected rows up Popup Move Row Down.png Move selected rows down
Popup Box of Source Data.png Available when rows in result sheet (DescStatsQuantities) of Statistics on Whole Sheet are selected. Click this button to create box chart from the source data columns of the selected rows. Popup Histogram of Source Data.png Available when rows in result sheet (DescStatsQuantities) of Statistics on Whole Sheet are selected. Click this button to create histogram from the source data columns of the selected rows.

Single Cell

Click on the single cell with value. The mini toolbar below will appear:


Cell contains data
Popup Single Cell.png

Cell contains image
Popup Single Cell Image.png

Cell in Color Column
Popup Single Cell Color Column.png


Popup Mask Unmask Data.png Mask/ Unmask Data Popup Extend Selection.png Extend selection to last row with data
Popup Clear Rows Before.png Clear rows before selected cell. Available when the selected cell is not in the first row. Popup Define Name.png Define named range
Popup Insert Note.png Insert Note

Note: Note inserted into worksheet cell supports Origin Rich Text syntax, and shows as Render Mode.

Popup External Editor.png Open note in a separated Notes window
Popup Insert Latex.png Insert Latex Equation. Popup copy as image.png Copy As Image
Popup Freeze Panes.png Freeze Panes Popup Unfreeze Panes.png Unfreeze panes
Popup Pick New Color.png Pick New Color Popup Edit Color.png Edit Color.

Click this button to open standard Color dialog.

Popup Clear Worksheet.png Select from sub-menu to clear formats (bold, fill color, etc.), contents, inserted notes, or all above in the worksheet.
Popup Clear List.png

Multiple Cells /Range

Highlight multiple cells in a column:

Popup Multiple Cells in a Column.png

Highlight multiple cells in mutiple columns:

Popup Multiple Cells.png

Popup Mask Unmask Data.png Mask/ Unmask Data Popup Copy for Plotting.png Copy for Plotting
Popup Extend Selection.png Extend Selection to last row with data Popup Clear Rows Before.png Clear rows before selected cell. Available when the selected cell is not in the first row.
Popup Freeze Panes.png Freeze Panes Popup Unfreeze Panes.png Unfreeze panes
Popup Clear Worksheet.png Select from sub-menu to clear formats (bold, fill color, etc.), contents, inserted notes, or all above in the worksheet.
Popup Clear List.png

Label Row

Click the row header of the label row. The mini toolbar below will appear:
Popup Label Row.png

When label row = Long Name is selected, this toolbar is shown:

Popup Label Row LN.png


Popup Rich Text.png Rich Text Popup Insert User Parameters.png Insert User Parameters
Popup Apply User Parameters to.png Apply selected User Parameters row (including formual if any) to other sheets.

Apply User Parameters to Sheets.png

Popup Hide Row.png Hide
Popup Move Row Up.png Move Row Up Popup Move Row Down.png Move Row Down
Popup Wrap Text.png Wrap Text

Adjust width&height to see the wrapping effect

Popup Extract Units.png Extract Units from Long Name...
Popup Categorical.png Set selected label row as categorical. Popup Clear Worksheet.png Select from sub-menu to clear formats (bold, fill color, etc.), contents, inserted notes, or all above in the worksheet.
Popup Clear List.png
Popup Open Properties Dialog.png Open Properties Dialog

Worksheet inserted in Layout

Popup Worksheet in Layout.png

Popup Background Color.png Fill Color Popup Color for Banded Row.png Color for Banded Row
Popup Frame Thickness.png Frame Thickness

Popup Frame Thickness list.png

Popup Show Grids.png Show Grids

Popup Show Grids list.png

Popup Line Thickness.png Gridline Thickness. Popup Gridline Color.png Gridline Color
Popup Line Thickness Increase.png Thicker Gridline Popup Line Thickness Reduce.png Thinner Gridline
Popup Border Color.png Frame Color
Popup Font Size.png Font Size Popup Font Color.png Font Color
Popup Font Size Increase.png Increase Font Size Popup Font Size Reduce.png Decrease Font Size
Popup Update of Worksheet.png Update of Worksheet

Matrix

Click on the left-top corner of the matrix to select the whole matrix object. The mini toolbar below will appear:
Popup Matrix.png

Popup Palettes.png Fill color palette for the image thumbnails.
Available when Image Selector is turned on.
Popup Missing Value Color.png Missing Value Color.
Available when Image Selector is turned on.
Popup Flip Colormap.png Flip Colormap.
Available when Image Selector is turned on.
Popup Show X Y.png Show X/Y Popup View Image.png View Image
Popup Image Thumbnails.png Image Selector Popup Slider or Thumbnails.png Slider or Thumbnails
Popup Clear Data.png Clear Data Popup Copy for Plotting.png Copy for Plotting
Popup Sheet Notes.png Open Sheet Notes dialog to add notes and tab color for current sheet Popup Define Name.png Open New Name dailog to define a range
Popup Show Organizer.png Show Organizer Popup Open Properties Dialog.png Open Properties Dialog

Popup Matrix Properties Dialogs List.png

Image Page

Move the cursor to the page edge, click the edge or gray area outside the image page when the cursor turns to Page cursor.png. The mini toolbar below will appear:

Single frame Image
Popup Single Image Page.png

Video
Popup Video Image Page.png

Multi-frame stacked Image
Popup MultiFrame Image Page.png

Popup Add ROI.png Add a ROI box to image. Popup Actual Size.png Check to show actual size of the image. Uncheck will fit image to page size.
Popup Missing Value Color.png Fill missing values with selected color. Available only when the image has missing values. Popup Grayscale Slider.png Click to open a dialog allowing to drag the slider to set gray scale display. Available only for grayscale image with z1 and z2. See this page for details.

Popup Grayscale Display.png

Note: one can also run following LabTalk command to open this dialog.

run.section(imgfile,grayslider);
Popup Flip Horizontal.png Flip image horizontally Popup Flip Vertical.png Flip image vertically
Popup Rotate 90Deg Clockwise.png Rotate image by 90 degree clockwise Popup Stack Navigation.png Select from following 4 navigation ways:

Popup Stack Navigation Dropdown.png

Popup Rotate IMGR Deg Clockwise.png Rotate image clockwise. The increment degree is determined by @IMGR. Popup Rotate IMGR Deg Counterclockwise.png Rotate image counterclockwise. The increment degree is determined by @IMGR.
Popup Gray.png Convert color image into gray scale image Popup Revise Palette.png Revise the applied palette
Popup Set Grayscale Range.png Open cvgraymax dialog to set gray scale display range. Available for gray scale image only. Popup Reset Grayscale Range.png Reset the gray scale range to the original values. Available only when the gray scale range of the image has been changed before.

Data Highlighter

When open Data Highlighter, this Mini Toolbar will show in the right-top conner of the Graph window or Workbook window.
Popup Data Highlighter.png

Popup Create Subset Sheet.png Create Subset Sheet Popup Create Categories.png Create Categories
Popup Mask Unmask Highlight Points.png Mask/Unmask Highlight Points Popup Mask Unmask Dimmed Points.png Mask/Unmask Dimmed Points
Popup Delete Points.png Delete Points Popup Open Properties Dialog.png Open Properties Dialog

Project Explorer

Click the folders name in the Project Explorer to pop up this mini toolbar:
Popup Project Explorer.png

Popup Folder Notes.png Folder Notes Popup Duplicate Folder.png Duplicate Folder
Popup Open Properties Dialog.png Open Folder Properties Dialog


Buttons that Increment

Some Mini Toolbar buttons increase or decrease some property by some increment each time you click the button (e.g. font size of text). Control incrementing using the following LabTalk system variables:

You can check the increment value of a particular button by hovering on it. The Status Bar reports the current increment and the LabTalk system variable that you can modify to change the increment.

UG MT INCVARS status bar.png

For information on changing the value of a LabTalk system variable see FAQ-708 How do I permanently change the value of a system variable?.

Object Mini Toolbar Buttons System Variable Default Increment
Symbol Size UG MT INCSS.png @INCSS 1
Line Thickness UG MT INCLT.png @INCLT 1
Font Size UG MT INCFS.png @INCFS 1
Tick Label Rotation UG MT INCTLR.png @INCTLR 15
Text Object Rotation UG MT INCTOR.png @INCTOR 90
Graph Object Rotation UG MT INCGOR.png @INCGOR 45
Tick Length UG MT INCTL.png @INCTL 1
Pie Rotation UG MT INCPR.png @INCPR 10
Doughnut Hole Size UG MT INCDHS.png @INCDHS 5
Spacing Gap (column, doughnut, box) UG MT INCSG.png

(Example from Doughnut Chart)

@INCSG 5
Break Length UG MT INCBL.png @INCBL 1
Break Gap UG MT INCBG.png @INCBG 15
