15.5.1 Custom Table Style Template and Quantities in Table

When fitting from a graph window, you can decide whether or not to paste result tables to the source graph as well as customize the table format by specifying a worksheet template in Table Style Template, or customize the table content by dialog or specifying a .INI file in Quantities in Table.

Table Style Template

The report table is created by a built-in workbook template. Similar to manipulating a regular worksheet, you can customize the worksheet styles like fonts, background color, etc, and save this worksheet as a template, and then specify this template on Template to Create Table edit box.

Example:

  1. Import the file \Samples\Curve Fitting\Linear Fit.dat, highlight column B and plot a scatter plot.
  2. With the graph page active, select Analysis: Fitting: Linear Fit to bring up the Linear Fit dialog. Accept the default settings and click the OK button. The result table is pasted on source graph.
  3. Double-click the table to open it in a worksheet window. Set the first row's background color to red.
    Custom table theme Template01v.png
  4. Select File: Save Template As from the Origin menu. Name it as MyTemplate, and save it.
    Custom table theme Template 02.png
  5. Go back to the raw data worksheet. Highlight column C and create a scatter plot.
  6. With the graph active, bring up the Linear Fit dialog again. On Output tab, Expand Graph: Show Result Table to Source Graph branch, enter "MyTemplate" in the Table Style Template edit box.
    Custom table theme Template03v.png
  7. Click the OK button to fit. You can see the first row of report table in the result graph is red. In other words, the user-defined template was used to create the table on the graph.
    Custom table theme Template04v.png

Quantities in Table

There are two ways to determine what items show in the graph window results table:

In earlier versions, the report table displayed Standard Error in a separate table column. To revert to the older style delete all entries in the Quantities in Table dialog and press OK. See this FAQ for more information.

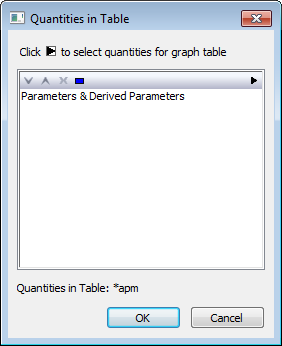

Quantities in Table dialog

Quantities in Table.png

  1. The Quantities in Table dialog can be opened in two ways: (1) Before fitting, open by clicking the DOT.png button next to Quantities in Table (e.g. under Graph on the Output tab of the Linear Fit dialog); or (2) after the graph and table are created, by right-clicking on the result table in the graph window and choosing Quantities in Table.
  2. Use the Quantities in Table dialog to select, remove or reorder quantities using the controls at the top of the list.
  3. Click the arrow to open a flyout menu and to include additional quantities.
  4. Additionally, you can Reset the table to the default configuration.
  5. Clicking OK will add the selected quantities to the table.


The following tutorial introduces the steps of creating linear regression report table on graph.

  1. Start with a new workbook and import the file \Samples\Curve Fitting\Linear Fit.dat.
  2. Click and select the second column and use the menu item Plot: Symbol: Scatter to create a scatter plot.
  3. With the graph active, use the menu item Analysis: Fitting: Linear Fit... to bring up the Linear Fit dialog.
  4. On the Fit Control tab, clear the Apparent Fit check box.
  5. On the Output tab in the dialog, expand Graph > Result Table node. Click the DOT.png button next to the Quantities in Table to open the Quantities in Table dialog. Press CTRL and click to select Equation, Plot, Weight, Residual Sum of Square, R-Square(COD) in the list. Click Move button 1.png to remove. Click OK and The remaining quantities will be shown in the graph.
  6. Click OK to close the Linear Fit dialog, the result graph will be similar to graph below:
    FIt Result Graph.png

Custom Quantities in Table by editing INI file

Origin uses themes, which save as .INI files in \CustomTable folder, to specify the table content. If you want to create a new theme, you should make a new .INI file, save in the \CustomTable folder and specify this .INI file on Quantities in Table edit box.

How to indicate a report tree value

The content in report tables is just links to the report worksheet, and the report worksheets are organized by tree structure, so you can just specify the tree nodes on the .INI file by:

TableName!ColumnNodeName[RowNodeName]
Custom table theme Template05.png

For example, the following curve slope value can be written as:

Parameters!Value[Slope]

Note that the node names are some what different from what you see in report worksheet, please refer to the following node item names.

Node item names

Notes table (Notes)

Column/Row Item Name

Description

User Name

Operation Time

Model

Equation

Report Status

Description

UserName

Time

Model

Equation

AutoUpdateMode

Input Data table (Input)

Column/Row Item Name

Columns

Rows

Cn

Rn

(Where n is the nth column / row)

Parameters table (Parameters)

Column/Row Item Name

Value

Fixed

Standard Error

t-Value

Prob>|t|

LCL

UCL

Dependency

CI Half-Width

Lower Bound

Upper Bound

Value

Fix

Error

tValue

Prob

LCL

UCL

Dependency

ConfInterval

LowerBound

UpperBound

Statistics table (RegStats)

Column/Row Item Name

Number of Points

Degrees of Freedom

Reduced Chi-Sqr

Residual Sum of Squares

R Value

R-Square(COD)

Adj. R-Square

Root-MSE (SD)

Number of Iterations

Fit Status

N

DOF

ReducedChiSq

SSR

Rvalue

RSqCOD

AdjRSq

RMSESD

NumIter

FitStatus

Summary table (Summary)

ANOVA table (ANOVAs)

Column/Row Item Name

DF

Sum of Squares

Mean Square

F Value

Prob>F

Regression

Residual

Uncorrected Total

Corrected Total

DOF

SSq

MeanSq

FValue

PValue

RegressionN

ResidualN

UCTotalN

CTotalN

(Notes: N means the nth ANOVA table)

Constructing INI file

  1. The theme files have a look of standard .INI files: there are sections that start with
    [sectionname]
    line, followed by
    name=value
    entry pairs. For now only one section, with the name [DataLinks], is supported. Lines start with semicolon ";" are comment lines.
  2. All entries should have names that start with the prefix "Entry", followed by a number. The numbers are used to order the entries in the theme vertically. Note that one entry, when theme is applied to a custom table, may result in more than one row. So, for example, if there are two entries, Enrty1 and Entry2, and Entry1 produced 3 rows in the custom table, then the Entry2 in the custom table will appear starting with row 4.
  3. Each entry value can consist of zero or more items, separated by space. The items will appear from left to right (i.e. in subsequent columns) when the theme is applied to a custom table. If an entry is empty (i.e. it has zero items) it results in an empty row when the theme is applied.
  4. Each item can consist of several parts. The parts can be either the node names of a report tree that refer to some other tables, in which case they produce links to other tables, or they can be literal strings which will be put as such in cells when the theme is applied. If there is space in the items, they ought to be quoted.
  5. If an item is a link, it typically looks like this:
    TableName!ColumnNodeName[RowNodeName]
    Every link item must begin with the name of a node in the report tree that represents a table. RowNodeName represents the name of a node that produces one row in the TableName table (that it represents a row is indicated by the fact that the node name is in square brackets). ColumnNodeName represents the name of a column node in the TableName table. The above link will, when applied as a theme to a custom table, produce the link to one cell: the cell is in the table TableName, in the row RowNodeName, and in the column ColumnNodeName. For example:
    Parameters!Value[P1]
    is a link to the Value of the first parameter in the Parameters table.
  6. Several column nodes of the same table can be combined in one link. For example:
    Parameters!(Value,Error)[P1]
    will produce two cells side-by-side: the links to the Value and the Error cells of the first parameter in the Parameters table.
  7. If a row or a column node name is omitted, the result is a link to the "whole" other dimension. For example
    Parameters!Value
    produces the link to the whole Value column, and
    Parameters![P1]
    produces a link to the whole row of the first parameter in the Parameters table.
  8. If both row and column node names are omitted, and only the table node name (followed by '!') is present, the result is a link to the whole table. Such as:
    Parameters!
    is a link to the whole Parameters table.
  9. There is a special keyword -- Labels. It is used to indicate that in the given dimension the link to labels should be produced. For example:
    RegStats![Labels]
    produces the columns labels of the table RegStats. And
    Parameters!Labels[P1]

Example

Open the file \CustomTable\FitNL.INI by notepad, you can see the default output table theme for nonlinear curve fitting is (valid lines):

[DataLinks]
Entry1=Notes![Model]
Entry2=Notes![Equation]
Entry3=RegStats![ReducedChiSq]
Entry4=RegStats![AdjRsq]
Entry5=Parameters!(Labels,Value,Error)

which represent the following tables on report worksheet:

Custom table theme Template06.png

To involve the p value in ANOVA table to the graph table, just modify the file to:

[DataLinks]
Entry1=Notes![Equation]
Entry2=RegStats![AdjRsq]
Entry3="Model P Value" ANOVAs!PValue[Regression1]
Entry4=Parameters!(Labels,Value,Error)

Create a folder named CustomTable in you User File Folder. Origin will use settings (.INI file) in User File Folder first. Then save the .INI file, say MyTheme.INI in the new created CustomTable folder. To use this theme, specify the file (full name) on Output: Settings: Show Result Tables to Source Graph: Quantities in Table edit box.

Custom table theme Template07v.png
