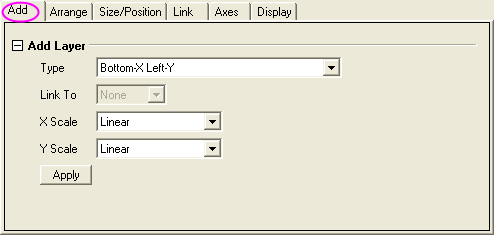

8.12.2.1 Add TabLayManageAddTab
Add Layer
Type

This dropdown list specifies the layer type to be added. Options are:
 BottomX LeftY
 Add a layer with independent bottom X and left Y to the graph.
 TopX (Linked Y Scale and Dimension)
 Add a layer, which is linked to the Y scale and dimension of the parent layer, to the graph with independent top X axis display.
 RightY (Linked X Scale and Dimension)
 Add a layer, which is linked to the X scale and dimension of the parent layer, to the graph with independent right Y axis display.
 LeftY (Linked X Scale and Dimension)
 Add a layer, which is linked to the X scale and dimension of the parent layer, to the graph with independent left Y axis display.
 TopX RightY (Linked Dimension)
 Add a layer, which is linked to the dimension of the parent layer, to the graph with independent top X axis and right Y axis display.
 BottomX RightY (Linked Dimension)
 Add a layer, which is linked to the dimension of the parent layer, to the graph with independent bottom X axis and right Y axis display.
 Inset (Linked Dimension)
 Add a inset layer, which is linked to the dimension of the parent layer, to the graph with independent bottom X axis and left Y axis display.
 Inset With Data (Linked Dimension)
 Add a inset layer, which is linked to the dimension of the parent layer, to the graph with independent bottom X axis and left Y axis display. The added layer will display all the plots that are included in the parent layer.
 No Axes (Linked XY Scale and Dimension)
 Add a layer, which is linked to the XY scale and dimension of the parent layer, to the graph with no axes display.

Link To

This dropdown list is only enabled when the Type of the layer to be added is not BottomX LeftY. It determines which existing layer will be linked to the new layer.

X Scale

This dropdown list can be used to select an X scale type. Options are:
 Linear
 Standard linear scale, where X'=X.
 Log10
 Base 10 logarithmic scale, where X'=log(X).
 Probability
 Represents the inverse of a cumulative Gaussian distribution: X'=norminv(X/100). Plotting a cumulative Gaussian distribution produces a sigmoidallyshaped curve. This curve, when displayed on a probability scale, appears as a straight line. Since probabilities are expressed as percentages, all values must fall between 0 and 100. The probability scale range is 0.0001 to 99.999.
 Probit
 Like the probability scale, a sigmoidallyshaped curve plots as a straight line. In this case, however, the scale is linear, and the increment between tick marks is exactly one standard deviation. The value "5" on the scale shows the mean, or 50% probability. "6" is one standard deviation away, etc.
 Reciprocal
 Reciprocal scale, where X'=1/X.
 Offset Reciprocal
 Offset reciprocal scale, where X'=1/(X+offset). Offset is defined as 273.14, where 273.14 is the absolute temperature for 0° C.
 Logit
 Logit=ln(Y/(100Y)). As with the probability and probit scales, a sigmoidally shaped curve plots as a straight line.
 Natural Log
 ln, base e logarithmic scale.
 Log2
 Base 10 logarithmic scale.

Y Scale

This dropdown list can be used to change the Y scale type. The options in this dropdown list are the same as the ones in the X Scale dropdown list.

Apply

When this button is clicked, the Add settings that you changed will be applied in preview graphs, and you can see it in the Preview panel.
