11.13 The Vertical Cursor Gadget


Video Image.png See more related video:Vertical Cursor Gadget

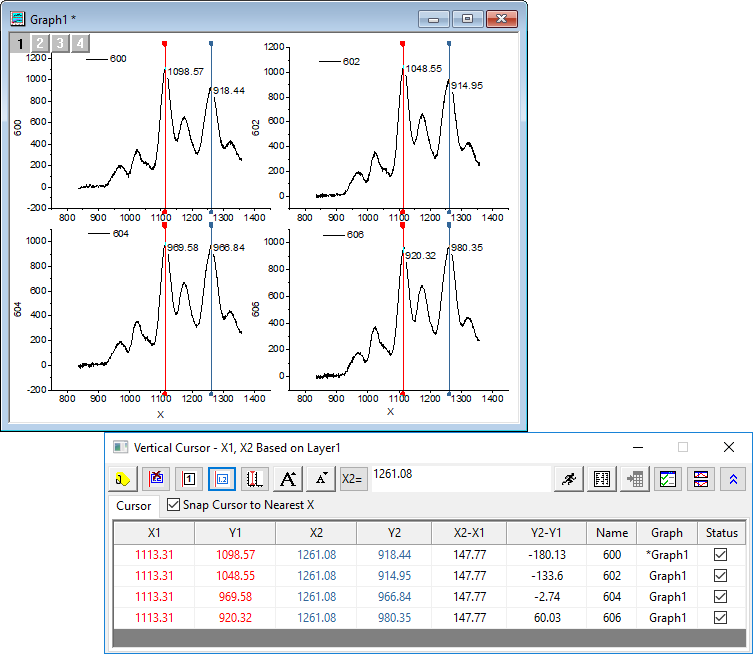

Use the Vertical Cursor gadget to read X and Y coordinate values for data points on stacked panel and multi-panel plots.

This gadget is available in the Gadgets menu when a graph window is active.

Vertical Cursor 01.png

Since Origin 2021, a switching button Add Linked Cursor for Each Layer Button Add Linked Cursor.png/Remove Linked Cursor for Each Layer Button Remove Linked Cursor.png

has been added to allow you add linked cursors to all layers and move the cursors simultaneously to read the XY coordinate in each layer of a multi-layer graph.

The Gadget Dialog's Toolbar Buttons

Add Tag and Label

Button Tag and Label.png

Add tag and labels at current position for the selected plots, and the XY coordinate values of this tag will output to the result sheet.

If do not need this output when you click this button, click Options button to open Preferences dialog, uncheck Output Tags in Labels and Tags tab.

Note: You are allowed to add multiple tags on a graph, labeling the data points with specified format.

Hide Label

Button Hide Label.png

Click this button to specify whether to hide the labels. Note: Only the X value will be tagged at the top/bottom of the graph while the labels are hidden.
Show All Info in One Label/Multiple Lables

Button Show All Info in One Label.png/ Button Multiple Labels.png

Show information of all data plots into one label or each plot has its own label.
Add 2nd Cursor/Remove 2nd Cursor

Button Add 2nd Cursor.png/Button Remove 2nd Cursor.png

Click this button to add second cursor. The difference between two cursors can be calculated and outputted. Click the button again to remove the second cursor
Add Linked Cursor for Each Layer/Remove Linked Cursor for Each Layer
Button Add Linked Cursor.png/Button Remove Linked Cursor.png
Click this button to add or remove the linked cursor on each layer. If the second cursor has been added, there will be two linked cursors in each layer.
Increase/Decrease Font Size

Button Increase Font.pngButton Decrease Font.png

Increase or decrease the font size of the labels.
Move Cursor to X

Button Move Cursor.png

Move the cursor to the position specified by the input X value.
Output Report

Region stats outputstats.png

Output the XY coordinate values listed in the Cursor tab to the specified worksheet. Note that pressing the O key also outputs the current values to a worksheet.
Go to Report Worksheet

Button Go to Report Worksheet.png

Switch to the report worksheet.
Options

Button Preference.png

Open the Preference dialog.
Link/Unlink Graphs

Link Unlink Graphs.png

Click this button to open the Graph Browser, to select and link graphs to the current graph.
Hide Details

Hide Details.png

Click this button to expand or hide the Cursor table.

Data Points List

Snap Cursor to Nearest X

Select to snap the cursor to the nearest source data points in X direction.

Cursor Table

This table lists information about the intersection of the vertical cursor and data plots.

This table includes two context menus with which you can customize column and plot display.

Context Menu 1

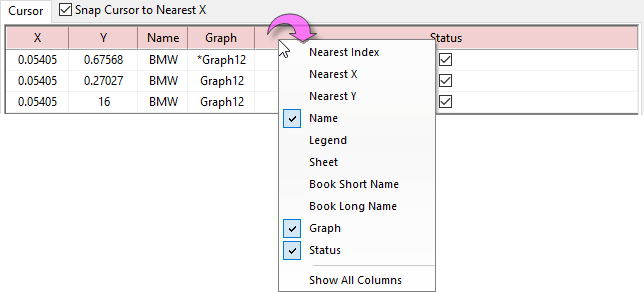

Right-click a column header to open a menu which will let you select the columns to display in this table.

Vertical Cursor 02.png

Note: Since Origin 2021b, the menu item Legend has been added into the list to let you choose whether show the Plot Legend in the table to distinguish the plots, in case that the plot names are same or similar.

Context Menu 2

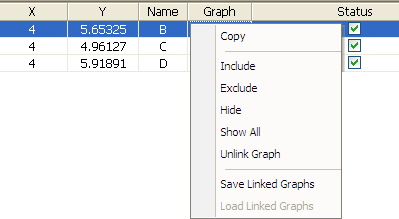

Right-click the area below the column header to open another menu. Here, you can select to copy data to the clipboard, choose which plots to display in the table, unlink the linked graph, and save/load linked graphs.

Vertical Cursor 03.png

Preferences Dialog

Click the Options button Button Preference.png to open the Preferences dialog. This dialog contains three tabs:

Vertical Cursor 05-1.png Vertical Cursor 05-2.png
Vertical Cursor 05-3.png


Table tab

On this tab, you can:

  • Specify the display format of X and Y values in the Cursor table and in labels on the graph.
Note that X/Y Display Format = <auto> will follow axis tick labels. For links to other Display Format syntax options, see this table.
  • Select columns to display in the Cursor table.

Tags and Labels tab

On this tab,

  • you can specify Label Form, Tag Form, and Tag Location.
    You may choose to customize the Label or Tag Form by writing a custom format string. For more information on string syntax, please refer to Substitution Notation in LabTalk Help.
  • You can specify the line length, Span Layers or Full Page.

Output tab

Specify the output result worksheet:

  • When you generate new output, results are output to a book and sheet named [%H-Cursor]Result by default, where %H is a string register storing the name of the active graph window. Other books and sheets can be specified. If the book and sheet do not exist, they will be created on output.
  • Alternately, you can click the flyout button Gadget flyout button.png to the right of Worksheet and choose Sheet in Input Book. This fills the edit box with [<input>]%H. When you generate new output, this will add results to the source workbook (the book containing the plot data), in a sheet named for the graph window.

Link/Unlink Graph

When open the vertical cursor and add a tag on a graph, you can click the button Link Unlink Graphs.png to open the Graph Browser and link the graphs together.

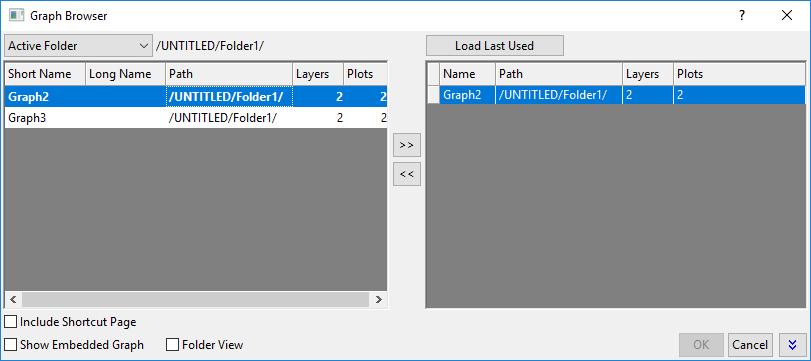

An additional button Load Last Used is available in the graph browser window for vertical cursor, by clicking this button, the graphs which are linked last time will be loaded and be ready to be linked.

Vertical Cursor Gadget 12.png

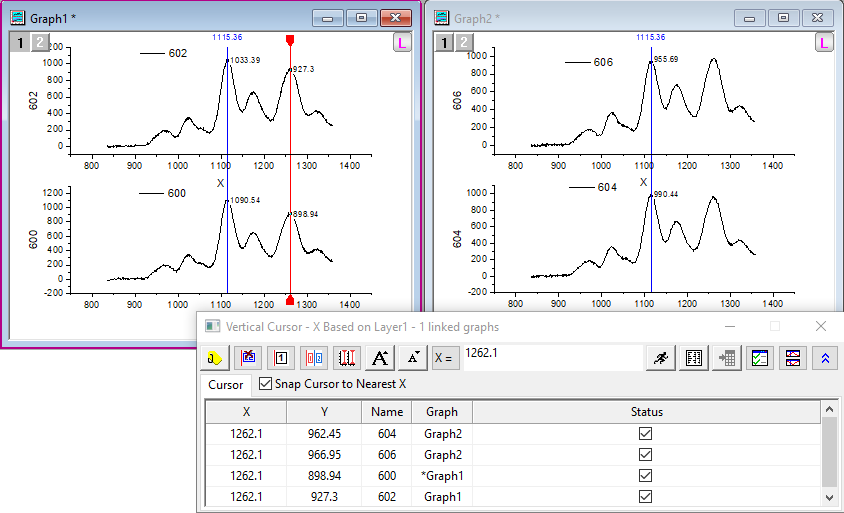

If the graphs are already linked, when the cursor is moved on one graph, data coordinates from all data plots and from each of the linked graphs will be displayed. Furthermore, when a tag is added to/deleted from the graph with the cursor, corresponding tag is added to/deleted from each of the linked graphs.

Vertical Cursor Gadget 10.png

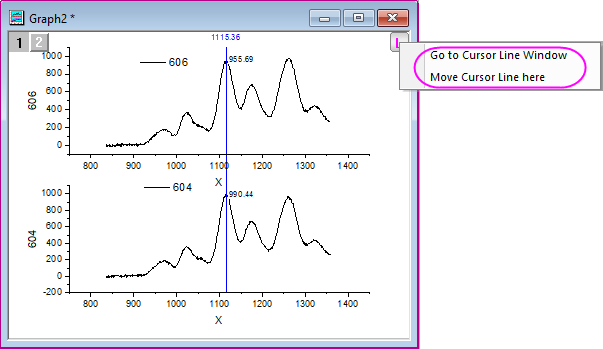

After the graphs have been linked together, an icon Linked graph button.png will be added on top-right of all graphs to indicate which graphs have been linked together. Right-click this button, a context menu to control the cursor line will be brought up and you can:

  • Go to Cursor Line Window:
Directly active the graph window which the cursor line is currently on.
  • Move Cursor Line here:
Move the cursor line to the current active graph window.

Vertical Cursor Gadget 11.png
